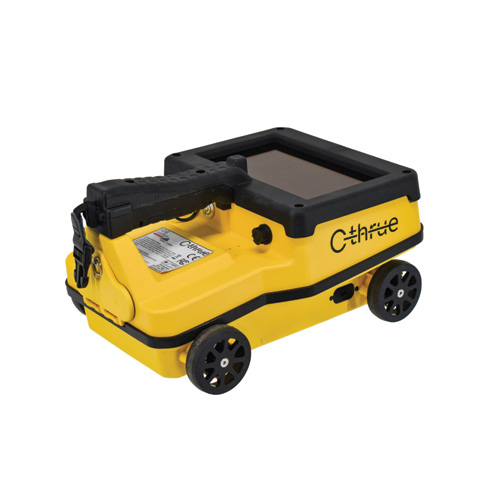

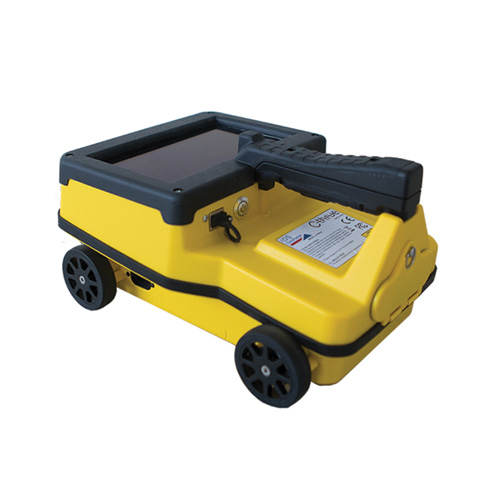

Leica Concrete IDS C-Thrue Scanner
See through concrete structures and reveal true data
C-thrue is an all-in-one Ground Penetrating Radar (GPR) for accurate scanning and real time analysis of concrete structures. Construction and service companies as well as civil and structural engineers can now improve the way they locate rebars, voids, post-tension cables, cavities, conduits, and any other objects buried in the structure before cutting or drilling into the concrete.

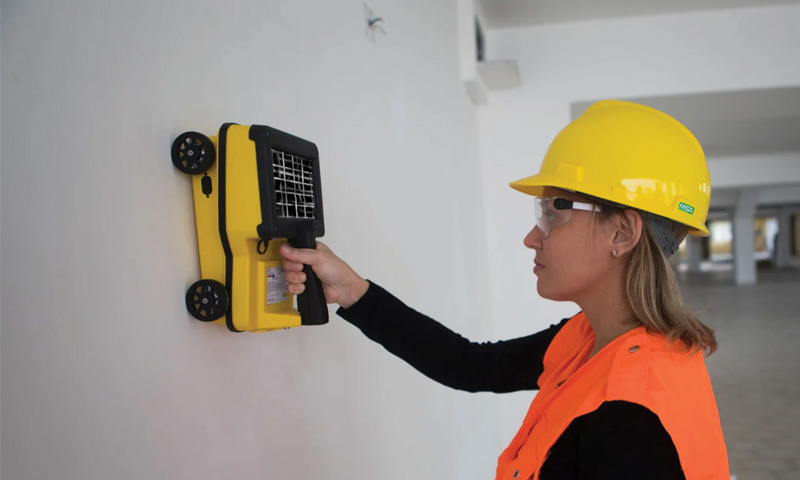

C-thrue offers more flexibility with no limitations for your analysis requirements, thanks to a compact and light telescopic pole and an external controller that can be easily transported on site in challenging locations or conditions (e.g. under a deck, under ceilings, over floors, on walls, etc…).
The C-thrue external controller allows easier and faster data interpretation thanks to real-time data processing and representation of results in Augmented Reality for more efficient decision-making.
C-Thrue Scanner – See through Concrete Structures and reveal true data
C-Thrue Scanner – Introduction and Demonstrations
C-Thrue Scanner -NDT Reveal CAD software for concrete inspections and analysis
C-Thrue Scanner – Basic line scanning
Features and Benefits:
Complete and efficient structural inspection
Detection of both, first and second layer of rebars, PT cables, power cables and voids, thanks to the dual antenna polarisation.
Safe drill in the surveyed structure
Rebar/void automatic insight capabilities that improve safety before cutting or drilling into the concrete.

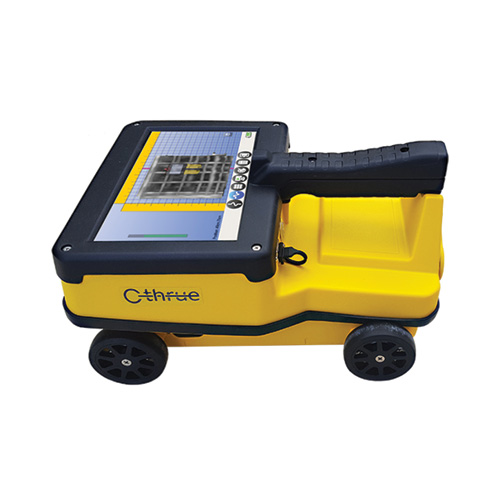

Fully-visible, multi-touch display
Data displayed on the screen are never obscured by the handle or the user’s hand.
Simplified data interpretation
Optimal decision-making supported by visualisation of acquired data in 3D models.
Increased data accuracy
Automatic positioning and navigation system.
Advanced data visualisation
Augmented reality for 3D data visualisation and sharing across operators – in real time or intervals after acquisition.
Flexibility everywhere
Lightweight, compact and transportable system for every user operations and construction sites.
C-thrue offers more flexibility with no limitations for your analysis requirements, thanks to a compact and light telescopic pole and an external controller that can be easily transported on site in challenging locations or conditions (e.g. under a deck, along vertical walls, etc…).
The C-thrue external controller allows easier and faster data interpretation thanks to real-time data processing and representation of results in Augmented Reality for more efficient decision-making.
Enhance Accuracy and Resolution
Dual polarization refers to the use of both horizontal and vertical polarization of electromagnetic waves. This approach enhances the accuracy and resolution of subsurface imaging, allowing for a more comprehensive assessment of concrete structures. Concrete scanners using dual polarization can provide detailed information about rebar orientation, voids, and other anomalies, leading to improved reliability in detecting and characterizing hidden features within the material.
Real Time Data Visualization

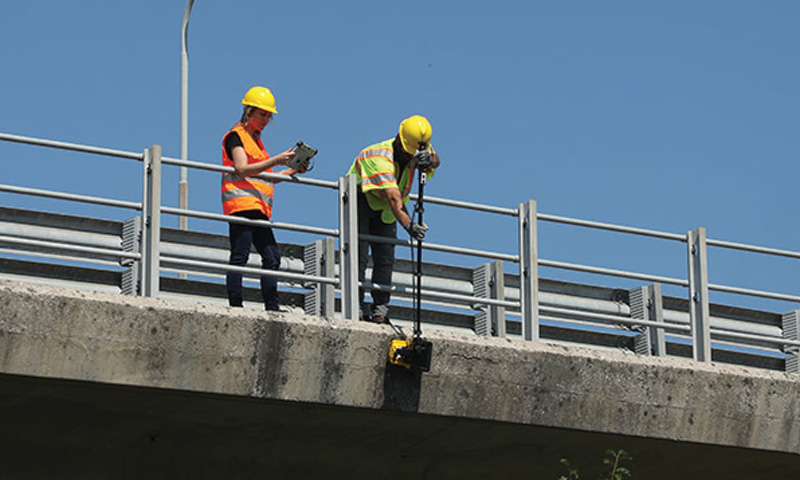

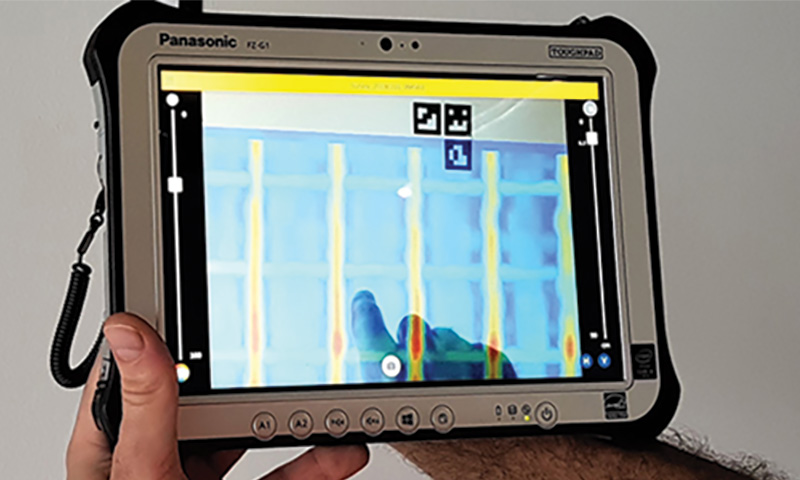

Add the C-thrue Remote Desktop and AR Kit to a C-thrue GPR to quickly and easily apply the data you captured on the spot. The tablet can also be used in Remote Desktop Mode to allow a second person to see what the C-thrue is seeing. This is very handy in situations where where you can’t see the screen on the C-thrue, like hanging over the side of an overpass running the scanner at the end of the Telescoping Remote Handle.
Scan Deeper, Boost Confidence
The dual polarized C-thrue concrete scanner sees through concrete to reveal rebars, voids, post-tension cables, cavities, conduits and more to depths reaching 31″, boosting confidence in reported data. With a deeper range than other concrete scanners, the C-thrue is a time and money saving addition to any concrete contractor’s tool box
What’s in the box:
Concrete scanner package consisting of:
- 1x 869102 C-thrue hard case
- 1x 867952 C-thrue safety lace
- 6x 869050 C-thrue Reflective bars
- 3x 865421 Li-ion C-thrue batteries
- 1x 865515 C-thrue battery charger

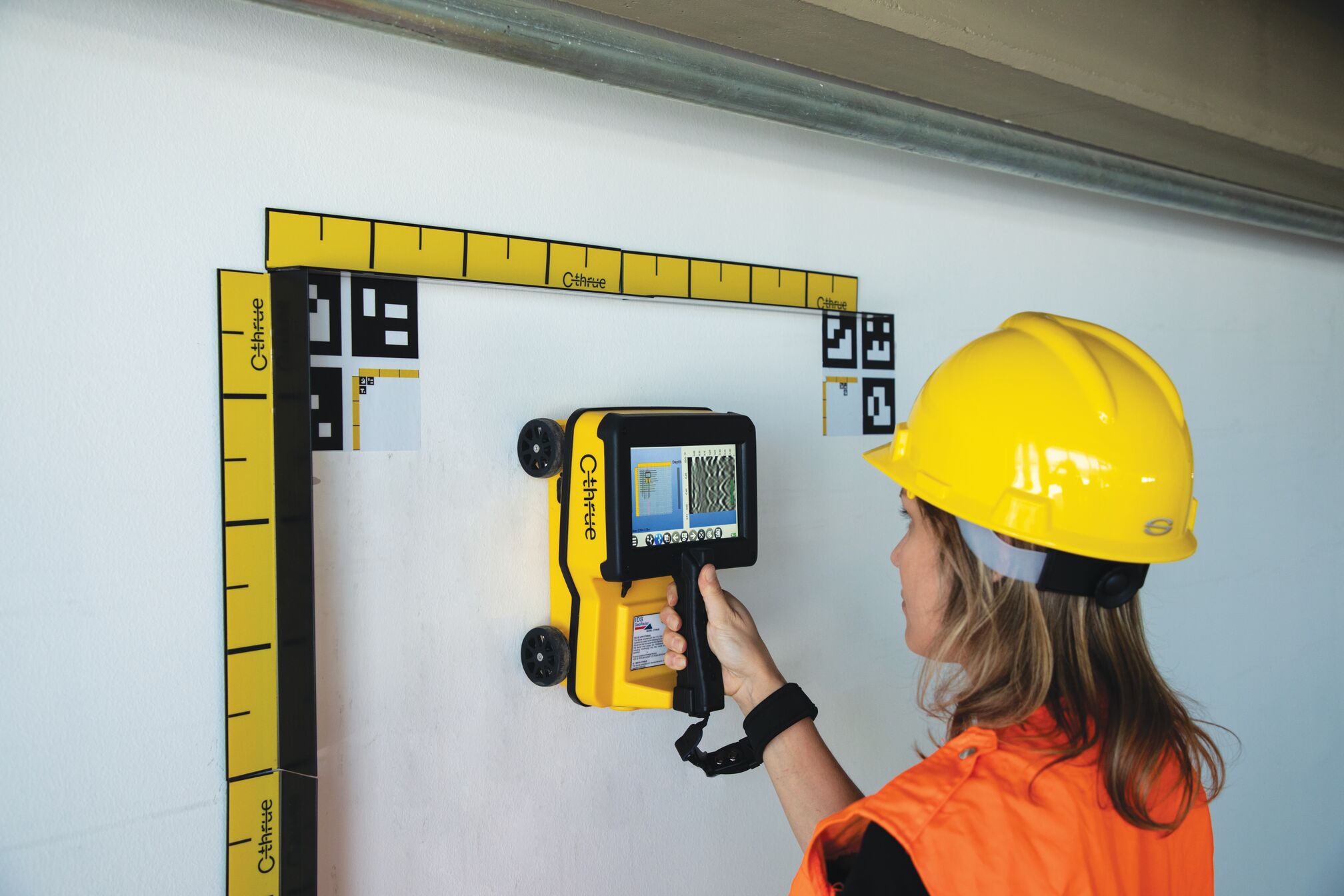

- 1x 891907 C-thrue paper grid
What’s in the box:
C-thrue full concrete scanner package consisting of:
- 1x 869102 C-thrue hard case
- 1x 867952 C-thrue safety lace
- 6x 869050 C-thrue Reflective bars
- 3x 865421 Li-ion C-thrue batteries
- 1x 865515 C-thrue battery charger
- 1x 891907 C-thrue paper grid
- 1x 875951 C-thrue remote handle
- 1x 6014775 C-thrue remote Desktop and AR Kit
