Leica C-Thrue Scanner Specifications - C-Thrue Software Features

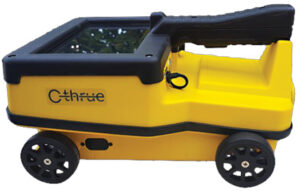

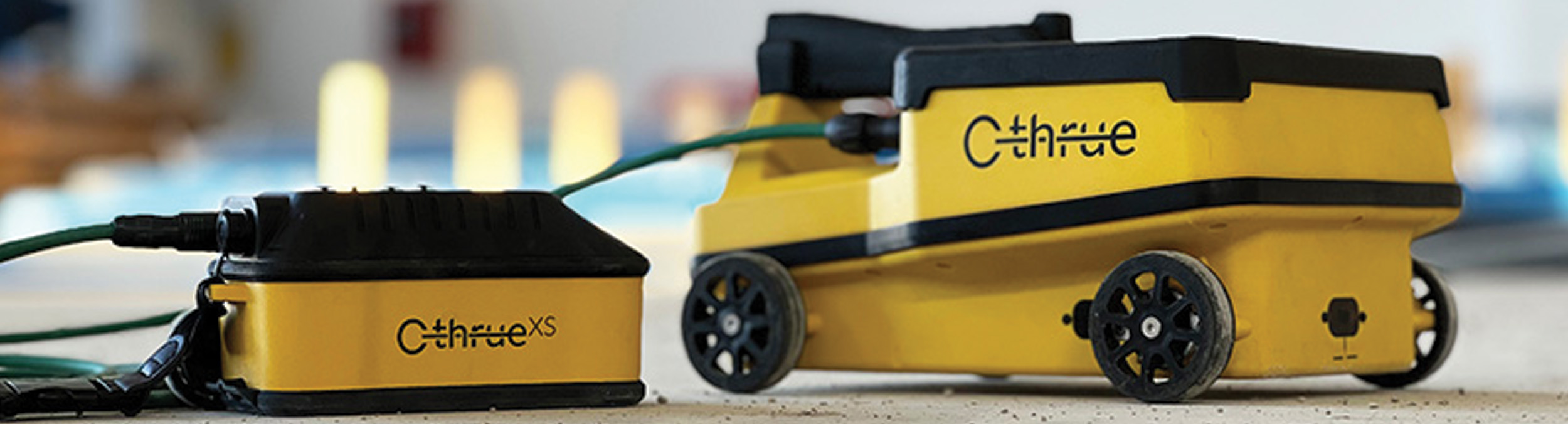

Leica IDS C-Thrue Scanner Technical Specifications
Antenna Center Frequency	2.0GHz
Number of Antennas	4
Antenna Polarisation	Horizontal and Vertical
Number of Radar Channels	2
Scan Interval	Up to 10 scans/cm
Depth Range	Up to 80cm (up to 31.5in.)
Display Modes	B-scan and C-scan (radar tomography)
Positioning System	“Virtual Pad” (based on 3 High safety – Class 1 laser sensors with reflective bars)
AC Power Conduits Detection	EM Sensor Integrated (50/60 Hz)
Battery	Li-ion Battery, 15V, 3.2Ah, 3-hour runtime
Data Storage	32GB
Connectivity	USB, Wi-Fi
Mechanical Specifications
Dimensions (Length X Width X Height)	285mm X 200mm X 160mm (11.2in X 8.6in X 6.3in)
Weight	2.4kg (5lb) with battery
Display	7.0 inches TFT multi-touch
Environmental Specifications
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Storage Temperature	-40°C to +60°C (-40°F to 140°F)
Environmental	IP65
Software Specifications
C-Thrue Software	Quick Start-up Real time radar data acquisition, processing and visualization in B-Scan Real time feature marking, management and editing tool Rebar/Void automatic discrimination VirtualPad – Positioning and navigation system Visualization of C-scan (radar tomography) Real time diagnose of radar and the other devices Metric and imperial units Availble in more than 20 languages First rebar layer automatic detection Automatic job reports Real time Power conduit sensing display

C-Thrue Concrete Scanner – Article number: 868510
C-Thrue full Concrete Scanner Package – Article number: 6014777
