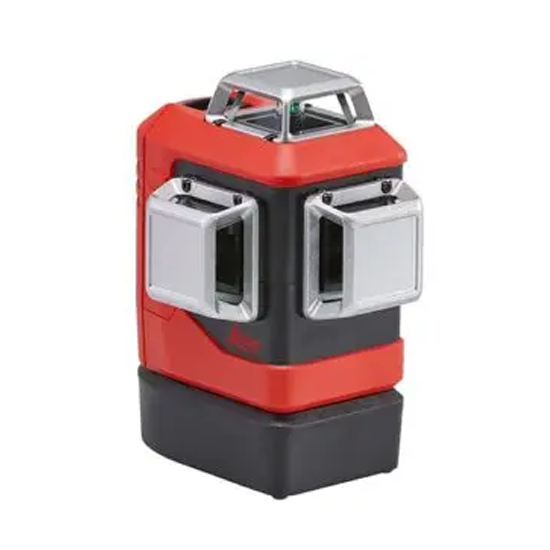

Leica Lino L6G Series Green Beam Laser

Price range: $770.00 through $920.00

360° green laser lines ensure highest visibility of up to 70 metres in diameter; making this the perfect tool for multi-directional alignment, plumbing, levelling and squaring tasks in large and bright environments

Description

Leica Lino L6G Series Green Beam Laser

360° green laser lines ensure highest visibility of up to 70 metres in diameter; making this the perfect tool for multi-directional alignment, plumbing, levelling and squaring tasks in large and bright environments

PRECISION ALIGNMENT GREEN MULTI-LINE LASER

3×360° HIGHLY VISIBLE GREEN LASER LINES

Three, ultra-strong 360° thin, crisp and clearly visible green laser lines are ideal for bright environments and large work environments as green laser lines are up to four times more visible to the human eye if compared to red lasers.

EASY SET-UP AND POSITIONING

The vertical laser lines projected to walls and ceilings are easily adjusted once the plumb point is set. The integrated base of this line laser allows you to position the cross section (plumb point) of the two vertical laser lines where it is required and you then can adjust the position of these lines by ± 10° while keeping the position of the plumb point.

CONTINUOUS WORKING

The triple power concept assures an uninterrupted workflow of any layout tasks. Rechargeable Li-Ion batteries last for up to 11 hours of continuous operation. To further increase the operating time, the laser line strength is adjustable (100/75/50 percent) which has the added benefit of thinner laser lines. Alternatively, Alkaline batteries or a charger can be used.

360° laser line projection for multi-directional alignment – perfect for indoor applications. The laser’s vertical lines are easily adjusted once the plumb point, which is located outside the device, is set. This unique feature allows the plumb point (cross-section of two vertical lines) to stay in position while the two vertical lines rotate around it by ±10°.


Quick Details

  • Horizontal and two vertical 360° green laser lines
  • Best visibility due to green Ultra-power laser diodes
  • Self-leveling over wide range
  • Fixed plumb point due to integrated base
  • Adjustable strength of laser lines
  • Operating range of up to 35 metres

  • Li-Ion power for up to 11 h
  • Uninterrupted working with Triple-Power concept
  • Smart magnetic adapters versatile usage

Downloads

Details

  • Horizontal and two vertical 360° green laser lines
  • Best visibility due to green Ultra-power laser diodes
  • Self-leveling over wide range
  • Fixed plumb point due to integrated base
  • Adjustable strength of laser lines
  • Operating range of up to 35 metres
  • Li-Ion power for up to 11 h
  • Uninterrupted working with Triple-Power concept
  • Smart magnetic adapters versatile usage

Specifications

Beam horizontal 360°
Beam vertical 2 x 360°
Intersection points up, down, right, left, front, back (90° / 180°)
Range / diameter* 35 m / 70 m (115 ft / 230 ft)
Range / diameter* with Leica RGR 200 receiver 70 m / 140 m (230 ft / 460 ft)
Levelling accuracy ± 0.2 mm/m (± 0.002 in/ft)
Horizontal- and Vertical line accuracy ± 0.3 mm/m (± 0.004 in/ft)
Intersection point accuracy ± 0.2 mm/m (± 0.002 in/ft)
Self-levelling range ± 4°
Self-levelling time < 3 sec
Fine adjustment ± 10° around vertical intersection point
Out-of-level warning yes – blink lines every 5 s
Levelling pendulum (lockable)
Laser 525 nm / class 2 (acc. to IEC 60825-1)
Protection class IP54 (dust and splash water)
Battery type

3xAA Alkaline

Lino Li-Ion battery pack
5200 mAh / 18.7 Wh
or 3xAA Alkaline

Laser line intensity (selectable) 100 %, 75 %, 50 %
Operating time with Li-Ion

optional

up to 11 h (3 beam, 50 % power)

Operating time with Alkaline

up to 8 h (3 beam, 50 % power)

up to 8 h (3 beam, 50 % power)

Dimensions 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in)
Weight 781 g (1.71 lbs)
Operation temperature -10 to +50° C (14 to 122° F)
Storage temperature -25 to +70° C (-13 to +158° F)
Laser line width @ 5 m (16.4 ft) distance < 2 mm (< 0.08 in)
Tripod thread 1/4 in (5/8 in with adapter)
Pulse power for receiver yes

* Depending on lighting conditions

Additional information

Weight 5 lbs
Model

918977 Leica Lino L6Gs-1, 912971 Leica Lino L6G-1
