Description
Geocue Trueview 1 and Trueview 1 Lite
GeoCue is democratizing high-precision drone LiDAR technology with the introduction of two new survey-grade scanners: the TrueView 1 Lite (TV1 Lite) and the TrueView 1 (TV1). These innovative additions to the TrueView product family offer a cost-effective solution, enabling professionals across experience levels to leverage the power of LiDAR for enhanced surveying and mapping capabilities without significant capital investment.
Build Your Perfect Solution
GEOCUE TV1
GEOCUE TV1 Light
Key Features

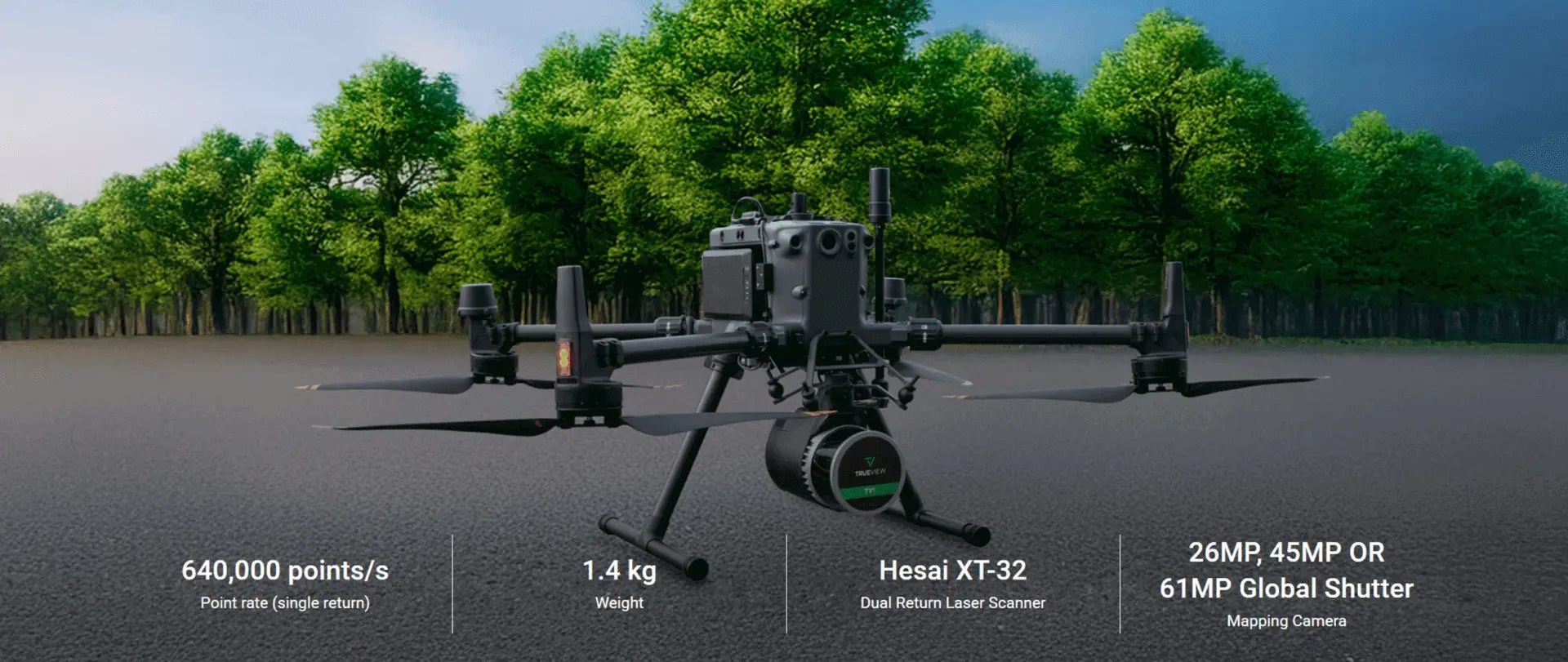

- 640,000 points/s (Point rate (single return)
- Lightweight – 1.4 kg weight
- Hesai XT-32 (Dual Return Laser Scanner)
- TV1 – 26MP, 45MP or 61MP Global Shutter (Mapping Camera)

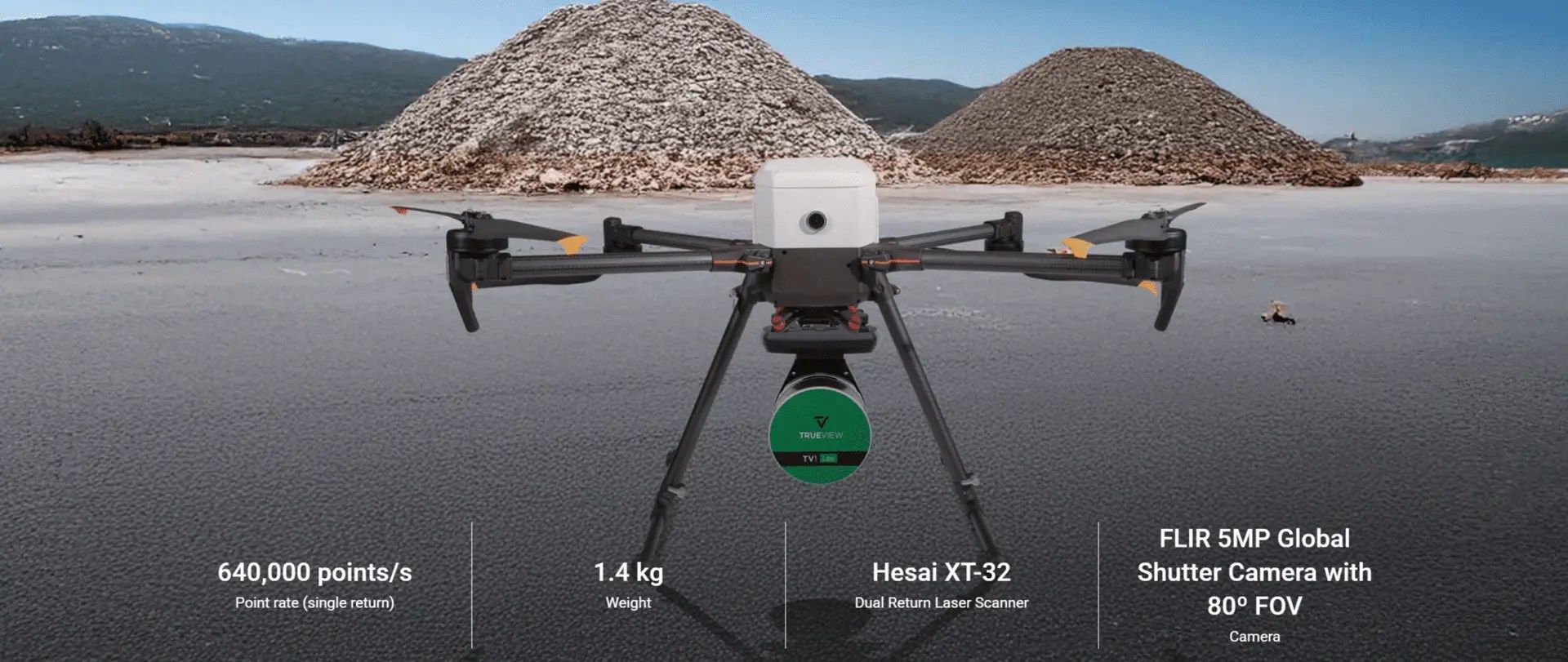

TV1 Light – FLIR 5MP Global Shutter Camera with 80º FOV - Manufactured in Huntsville, Alabama, USA
Choose the Right Camera for Your TV1
Choosing the right camera depends on the specific needs of your project, including the level of detail required, the environment you’ll be working in, and how you plan to use the images.
26MP Camera
Good Resolution
45MP Camera
Better Resolution
61MP Camera
Best Resolution
FLIR 5MP Global Shutter
LiDAR and High Resolution Imaging

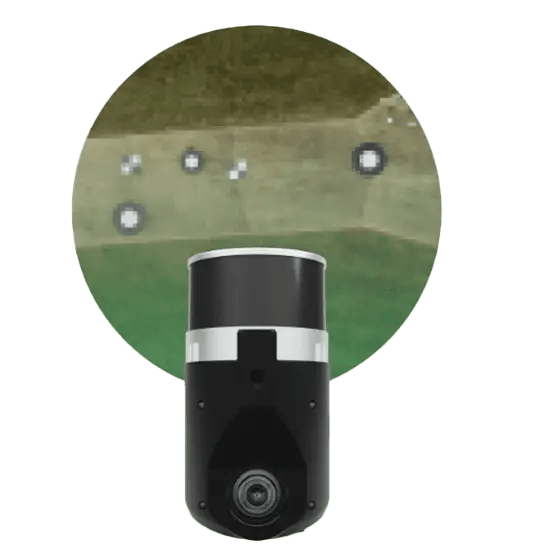

A 26MP camera offers a solid resolution that is sufficient for many standard applications, including general surveying and mapping tasks where moderate detail is required.

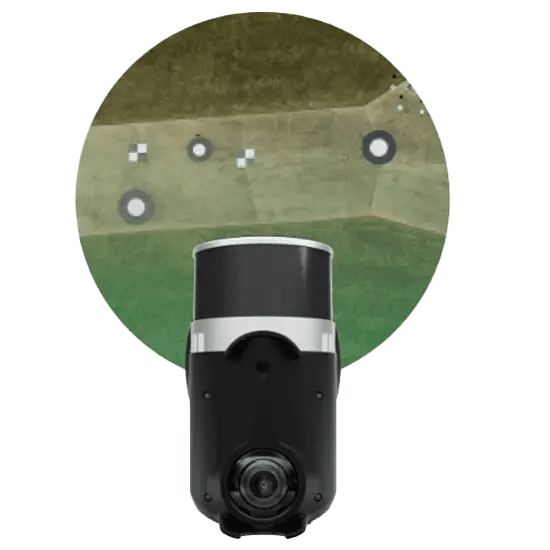

The 45MP camera captures more detailed images which can be very useful in environments where clarity and detail are necessary for analysis.

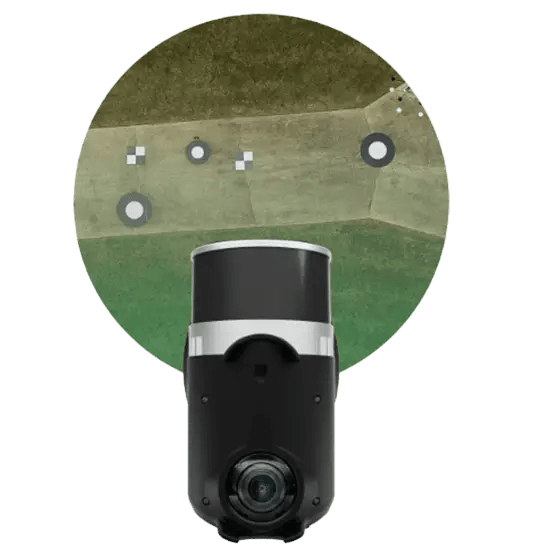

At the high end, a 61MP camera offers very high resolution, allowing for the capture of extremely detailed images, perfect for complex mapping needs.
Equipped with a Flir 5MP Global Shutter camera featuring a 120° field of view, the TrueView 1 Lite provides excellent image quality and coverage. The camera’s global shutter ensures clear and distortion-free images, even when capturing fast-moving objects or in low-light conditions. This combination of LiDAR and high-resolution imaging allows for comprehensive data collection and analysis in a single flight.
Features Applications
What’s included
TV1 Package
- TV1 Sensor
- USB Thumb drive
- Sensor Hardcase
- 1 Year of LP360 Drone Processing Software
- 1 Year of hardware and software support
- 2 days of included training.
- Multiple Add-on Plans to choose from:
- Strip Align for Drone
- 3D Accuracy
- Auto AI Ground Classifications
- Cloud Collaborate
- Photogrammetry with Agisoft
- Photo
- Business Intelligence Unlimited
TV1 Lite Package
- TV1 Lite Sensor
- USB Thumb drive
- Sensor Hardcase
- 1 Year of TV1 Lite Annual Processing
- 1 Year of hardware and software support
- 2 days of included training.
Introducing the new TrueFinance Plan for the TrueView 1 Lite—making it simpler and more affordable than ever to get started with drone LiDAR surveying. With an initial down payment of just $8,990, you can start utilizing the cutting-edge capabilities of the TrueView 1 Lite. The payment plan is straightforward: after the initial down payment, just pay $1,000 per month for the next 11 months. TrueFinancing requires credit approval; terms apply*.
