Description
Seafloor EchoBoat 240™
The EchoBoat-240TM is an uncrewed surface vehicle developed for hydrographic survey applications requiring the highest-resolution sensor suite available.With the new EchoBoat-240 platform,the user no longer has to sacrifice performance to meet payload capacity. This is a highly mobile survey platform featuring; multi-payload capacity, both manual and autonomous control, and interchangeable sensor suites. For professional hydrographic survey requirements,the EchoBoat-240TM may be tailored to individual customer requirements. The boat may be purchased with the desired sensor payload pre-installed, or supplied ready to accept existing equipment from the User’s survey equipment pool. Similarly, customized cabling can be included allowing the boat to accept existing GPS, GNSS and RTK positioning systems. For a turnkey survey-grade system, the EchoBoat-240TM can be outfitted with singlebeam, multibeam, and side scan sonar systems.
Applications: Inspection / survey of mines, sewage treatment plants, lakes, harbors, rivers, and in-shore areas. *Both remotely controlled and autonomous navigation suites available.
Specifications:
- Top Speed: 4 kn
- Hull Length: 2.4 m / 7.87 ft
- Hull Width: 0.9 m / 2.95 ft
- Hull Material: UV Resistant HDPE
- Hardware: Stainless Steel
- Empty Hull Weight w/ Batteries: 158.75 kg / 350 lbs
- Payload: 90.7 kg / 199.96 lbs
- Transducer Wells: 3: Main, ADCP/DVL, SVP
- Power: 25.2 VDC
- Battery Endurance: 8 Hours at Survey Speed
- Electronic Control Unit: 2x 120 amp
- Motor: 2x Brushless DC Outdrive
- Remote Control: 2.4GHz / 900MHz Long Range RCU
- Remote Range: Up to 2 km
- GPS / GNSS: Customer Specified
- Communications: 2.4GHz UHF Telemetry
- Available Sonar Modules: Single Beam, Multibeam, ADCP / DVL, Side Scan, Sub-bottom Profiler, Magnometer
- Available Auxiliary Equipment: Sound Velocimeter, Velocity Profiler or CTD, Wi-Fi Remote Desktop, HD Thermal Camera Remote Controlled Profiling Winch, LiDAR
Instrumentation Options
Multibeam Echosounder
Singlebeam Echosounder
ADCP/DVL
Side Scan Sonar
Subbottom Profiler
Magnetometer
Sound Velocimeter
Sound Velocity Profiler / CTD
Wi-Fi Remote Desktop
HD Thermal Camera
Remote SVP Winch
LiDAR
RTK/GNSS
DGPS
INS
In the box

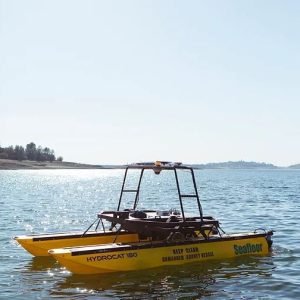

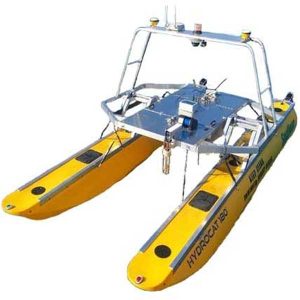

- Seafloor Systems HydroCat-180 Unmanned Surface Vessel (USV), 6m catamaran vessel with two modular independently articulated ruggedized HDPE plastic hulls.
- 2-axis mechanically Gimballed Deck for roll compensation – Ventilated IP67 watertight Equipment Bay with racks
- Equipment Mast
- Remote controlled electric actuating pole with locking piston
- SmartCast remote controlled profiling winch
- 2 x 10HP Torqueedo electric outboards with actuators
- Separate Thruster and Payload Batteries
- Single Charge point for onboard batteries – 8-hour operational duration at 5- 6knot survey speed
- Remote control and AutoNav autonomous package
- Industrial PC – Wi-Fi and 4G data communication – Navigation Aids, Light – HD Camera, 180degree view.
