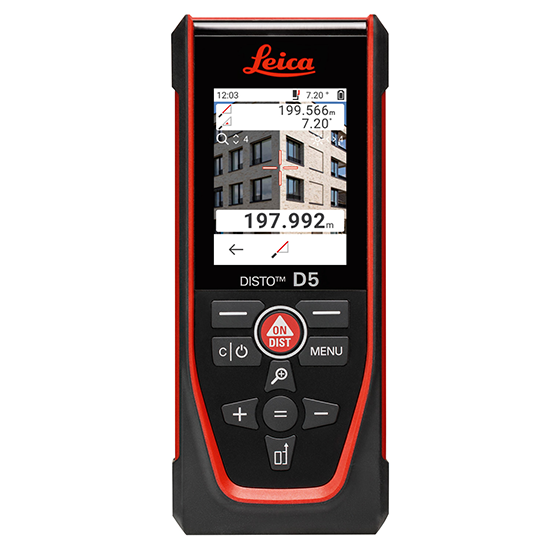

Leica Disto D5 Laser Distance Meter
The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Pointfinder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology. For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances. High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.
Trigger measurements with a wave of your hand
Bluetooth® Keyboard Mode
Ensure accurate
Trigger measurements with a wave of yor hand
Bluetooth® Keyboard Mode
Ensure accurate measurements from corners and tight places
The target always in sight
Even when the laser dot is no longer visible, the
target appears clearly on the crystal-clear display with IPS technology thanks to the high-quality digital Point-finder. This ensures accurate aiming and thus precise results, even in very bright environments and over long distances.
Uncompromising precision
The non-contact triggering of the measurement with gestures avoids moving the device and thus guarantees highly precise measurements, especially on small
targets or at long distances. In addition, measurement accuracy can be increased by using the Leica FTA 360 tripod adapter, as the fine drives enable very
precise aiming.
The perfect solution for every task
Various measurement functions, such as Smart
Horizontal Mode for measuring over obstacles, height tracking, profile or angle measurements ensure that every measurement task can be solved.
Flexible data transfer
In keyboard mode you can connect the Leica DISTO™ D5 to a computer and send measured values in the form of a keyboard entry to the cursor position in any application or a predefined template.
Advanced functionality
Various functions in combination with the Leica
DISTO™ Plan app, such as Smart Room, as well as the import of PDF files into the app, simplify the digital documentation of results.
Details
- Range up to 200 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Measuring slopes
- Smart Horizontal Mode
- Fast start-up time
- Foldable end-piece with automatic detection
- Bright and clear 2.4” IPS display with scratch-proof lens
- Trigger measurements with gestures
- Memory for 50 measurements
- Li-Ion rechargeable battery
- USB-C charging
- Keyboard Mode, simulating data-transfer via Bluetooth®
- Bluetooth® 5.0 Technology for error-free data transfer
- Works with DISTO Plan App (iOS and Android) and DISTO transfer (Windows)
In the box
Leica DISTO D5
- Leica DISTO D5 laser distance meter
- Hand loop
- Pouch
- USB cable
- Safety instructions
- Calibration Certificate Silver
- Quick Start with QR code linking to online manual
- 3 Years warranty card
