Autel Alpha
Autel Alpha – Beyond The Frontiers
Autel Alpha is an intelligent industrial drone for multi-purpose. Boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance capabilities, video transmission technology, and battery systems, it injects robust performance into the flight platform. With a foldable design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control within millimeters when carrying out the missions.
Paired with the next-gen DG-L35T gimbal, it integrates a 560x hybrid zoom camera, dual thermal imaging cameras, a visible light wide-angle camera, and a laser rangefinder. The dual thermal imaging cameras meet the needs of both short-range overview and long-range detail observation, achieving distant operation scenarios with unobstructed personnel recognition within an 8-kilometer range, providing more professional and comprehensive solutions for applications such as public safety, energy inspection, and emergency management.
Insight Beyond Limits
Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), a 4K 35x optical Zoom camera, a wide-angle camera and a laser rangefinder.
Super Zoom
The zoom camera suports 4K 35x optical zoom and 560x maximum hybrid zoom with clear observation up to 8 kilometers away. it efficiently empowers applications such as long-distance inspection.
Strong Infrared Perception
The thermal camera supports 56x hybrid zoom, dual thermal imaging lenses, with a resolution of 640×512. It features a 13mm wide-angle lens and a 45mm telephoto lens, catering to overiview with short focal lengths and detail-oriented viewing with ling focal lengths.
Super Sensitivity
The wide camera has an effective pixel count of 48 million, supporting a maximum photo resolution of 4000×3000 and a video resolution of 4000×3000 at 25 frames per second, meeting the needs of various shooting scenarios.
Accurate Ranging
The laser rangefinder supports one-click point positioning, allowing for quick acquisition of target positions, with a maximum ranging distance of up to 2 kilometers.
Hot-Swappable Batteries
Adopting a dual-battery redundant design, the fight time reaches 40 minutes, supporting hot-swappable batteries for seamless, eficient operations.
Multiple Payload Capability
The aircraft features multiple mounting interfaces: mounting interfaces. The Autel PSDK developer platform is open for creating a new industry ecosystem such as searchlights, loudspeakers, and more.
Applications
Public Safety
Search & Rescue
Inspection
Autel DG-L35T Gimbal
Videos
Specifications
- 560 Hybrid zoom
- Dual thermal imaging camera
- 4K 35X continuous optical zoom
- Starscape night vision camera
- 40 minutes of maximum flight time
- IP55 protection level
- 6.61 maximum payload
- 720º omnidirectional obstacle avoidance
- 4.34 Miles max service ceiling
- 12.42 miles image transmission range
- Multiple payloads and third-party compatibility
- GNSS – GPS+GLONASS+BeiDou+Galileo
In the box
- 1x Autel Alpha Aircraft: Includes propellers
- 1x Document Bag: Includes “Quick Start Guide” “Manuel” and a camera lens cleaning cloth.
- 1x Cleaning Kit: Includes 6 dampeners, soft brush

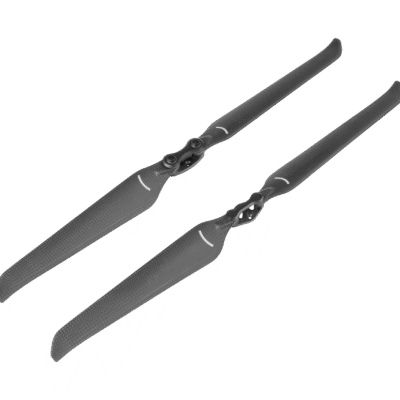

- Spare Propellers front arms: Spare propellers (CW×1 and CCW×1)
- Remote Controller: Comes with 1 Autel Smart Controller V3.
- AC Power Cable: For battery charging
- Gimbal Camera: Comes with a L35T gimbal camera, including a 128GB microSDcard.
- Battery Charger: Use with the AC Power Cable
- Dust Blower and spare propellersfor rear arms: Comes with a dust blower, spare propellers (CW×1 and CCW×1).For storing battery charger output cable.
- Smart Battery: Comes with 2 batteries as standard.
- Accessory Area: Includes a remote controller charger, a USB-C to USB-C datacable, a USB-C to USB-A data cable, a remote controller lanyard, maintenance screwdrivers (x1) and spare sticks (×2).
*** Please Note: Due to flight regulations, all Autel batteries will be shipped via UPS Ground!! ***
