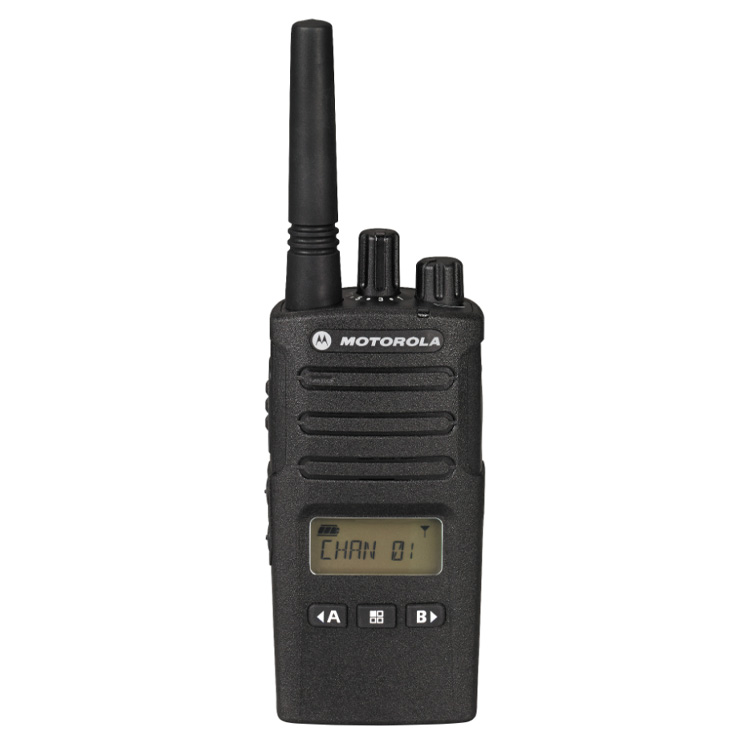

Motorola RMU2080D UHF W/Display 2 Watts 8 Channels Portable Radio

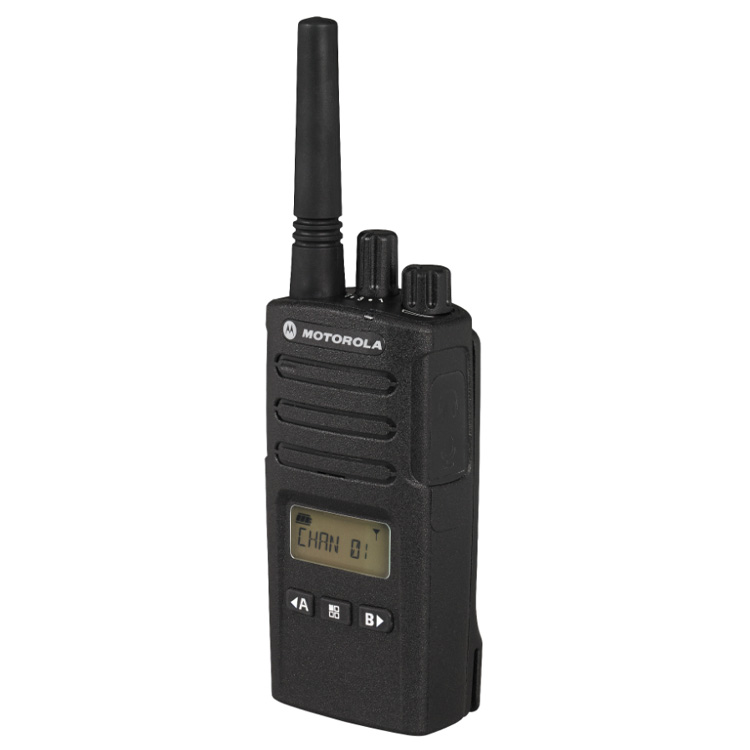

Motorola RMU2080D UHF W/Display 2 Watts 8 Channels Portable Radio - Image 2
Motorola RMU2080D UHF W/Display 2 Watts 8 Channels Portable Radio - Image 3

Motorola RMU2080D UHF W/Display 2 Watts 8 Channels Portable Radio

$329.00

Empower your team with a faster way to communicate. The RMU2080 on-site two-way business radio helps you communicate instantly, without missing a beat. With crisp, clear audio throughout the workplace and exceptional durability, the RMU2080 won’t quit in high noise, harsh conditions, and high use.

  • 8 Channels, 2 Watts
  • UHF (450 to 470 MHz)
  • IP Rating:  IP55
SKU: RMU2080D Category: Tag: Brand:

Description

Motorola RMU2080D UHF W/Display 2 Watts 8 Channels Portable Radio

Empower your team with a faster way to communicate. The RMU2080D (Display) on-site two-way business radio helps you communicate instantly, without missing a beat. This fully-featured portable combines outstanding quality with excellent affordability to give your operation the competitive edge. With crisp, clear audio throughout the workplace and exceptional durability, the RMU2080D won’t quit in high noise, harsh conditions, and high use.

The RMU2080D 2 watt, two-way radio operates on 99 UHF business exclusive frequencies and is FCC Narrowband ready. An easy to read display and four programmable buttons enables quick access to features. Enhanced audio quality, a rugged design and versatile customer programming software, make this radio an exceptional choice for all of your on-site business needs.

Whether you’re coordinating resources at the construction site or on the manufacturing line, the RMU2080D is tested to last, with high-powered accessories that work overtime for your business.

Specifications

GENERAL SPECIFICATIONS
Frequency Range UHF (450 to 470 MHz)
Audio Output 1500 mW
Channel Capacity 8 Channels
Channel Bandwidth 12.5kHz
Dimensions with: 4.5 in H x 2.2 in W x 1.6 in D (115.6 mm H x 57.6 mm W x 40.5 mm D)
Standard Li-Ion Battery 4.5 in H x 2.2 in W x 1.6 in D (115.6 mm H x 57.6 mm W x 40.5 mm D)
High Capacity Li-Ion Battery 9 oz (256g)
Weight with: 9.1 oz (259g)
Standard Li-Ion Battery Up to 15 hours with battery save on or up to 12 hours without battery save.
High Capacity Li-Ion Battery Available in Q4/2013
Average Battery Life @ 5/5/90: with Standard 2150 mAH Li-Ion Battery 3.7V Li-Ion
with High Capacity 3200 mAH Li-Ion Battery
Battery Voltage
  -122 dBm (0.18 µV)
RECEIVER 70 dB @ 12.5 kHz 75 dB @ 25 kHz
Sensitivity (12 dB SINAD) 70 dB
Adjacent Channel Selectivity 90 dB
Intermodulation Rejection < 5%
Spurious Response Rejection (blocking 1 MHz) -50 dB
Audio Distortion -50 dB
CSQ Hum and Noise @ 12.5 kHz -45 dB
PL Hum and Noise @ 12.5 kHz < -54 dBm
DPL Hum and Noise @ 12.5 kHz < -52 dBm
Spurious Emissions (< 1 GHz) 1.5W @ 8 ohms
Spurious Emissions (> 1 GHz)
Audio Output @ < 5% Distortion
  2 Watts
TRANSMITTER 1 Watt
RF Output: High (conducted) Low (conducted) < 1.5 ppm
Frequency Stability < -45 dBc
Spurs and Harmonics -36 dbm for f < 1GHz, -30 dbm for f> 1GHz
FM Hum and Noise ±2.5 kHz @ 12.5 kHz ±5.0 kHz @ 25.0 kHz
Modulation Limiting 70 dBc
Adjacent Channel Power -36 dbm for f < 1GHz, -30 dbm for f> 1GHz
Spurious Emissions @ 12.5 kHz -36 dbm for f < 1GHz, -30 dbm for f> 1GHz
Spurious Emissions @ 25 kHz +1 to -3 dB
Audio Frequency Response (0.3 – 3.0 kHz) < 2%
Audio Distortion

MILITARY SPECIFICATIONS MIL 810 E Methods/ Procedures
Standard 500.3 / Procedure 2
Low Pressure 501.3 / Procedure 1,2
High Temperature 502.3 / Procedure 1,2
Low Temperature 503.3 / Procedure 1
Temperature Shock 505.3 / Procedure 1
Solar Radiation 506.3 / Procedure 1,2
Rain 507.3 / Procedure 2,3
Humidity 510.3 / Procedure 1
Dust 514.4 / Procedure 1
Vibration 516.4 / Procedure 1,4
Shock

ENVIRONMENTAL SPECIFICATIONS -30ºC to +60ºC (Radio)
Operating Temperature IP55
Sealing Polycarbonate Housing passes EIA 603*
Shock and Vibration Satisfied EIA 603*

In the box

  • Standard Package
  • RM Radio
  • Standard li-ion battery
  • Drop-in charger
  • Charging power supply
  • Swivel holster
  • Operating Manual
  • Safety Manual

Warranty

2-Year Limited Radio Warranty

Additional information

Weight 2 lbs
