Description

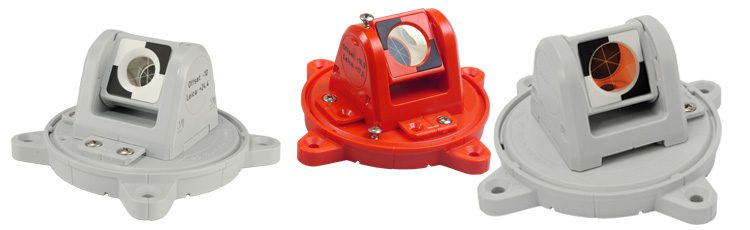

RSMP390 Mini Prisms can be quickly and easily stuck even to difficult surfaces, e.g. glass and marble façades, historic buildings, gas and oil pipelines, etc. or attached using plugs and screws. A magnetic version of the base plates is also available for easy installation on steel structures. If necessary, both the rotation function and the tilt function can be fixed by means of a screw.
The following accessories are offered for this product:
Fixed point (Item RSFP-X90)
Protection cap with or without magnetism (RSPC20, RSPC20M)
Protection cap with or without magnetism (RSPC20, RSPC20M)
When using tachometers and robotic total stations
- the prism can always be aligned accurately with the measuring instrument
- the prism can be turned in a radius of 180°, making it possible to use the same survey point from different directions
- bridges, façades and many other structures can be monitored even more quickly and precisely
- When robotic total stations are used permanent settlement measurements can be carried out during construction
When using mini prism RSMP390 in the ATR mode ranges of up to 600 meters are obtained.
The ranges are dependent on the device and can be adversely affected by weather and environmental conditions.
When sighting measuring points that are already known, with robotic total stations it is possible to achieve ranges of up to 1000 m. Depending on the focus, ranges of approx. 200 m are achieved for measurements in manual mode.
DETAILS

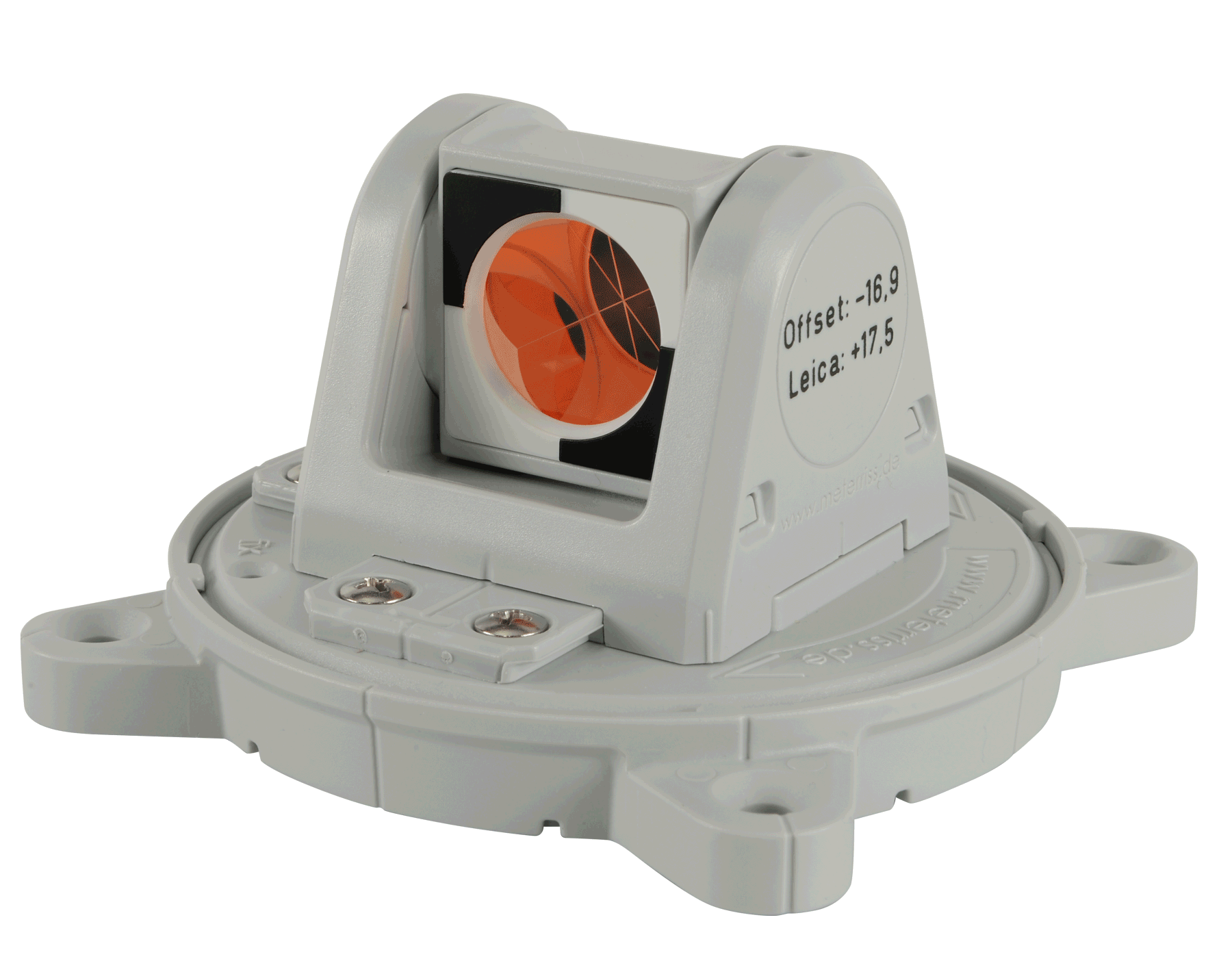

- Offset -16.9mm [Leica +17.5mm]
- 25.4mm copper coated mini-prism; Height of tilting mini-prism is 45mm
- Built-in magnetic base for easy installation on steel structures, or use with RSFP-X90 mount.
- Color Grey or Red
- Overall size: 105mm x 140mm x 65mm height
DOWNLOADS
- Dimensioning file RSMP390.pdf for download.
- Rothbucher Mini-prism evaluation White Paper download
