Autel Evo II Pro 6K Enterprise Bundle V3 (102001515)
Compact, Versatile Powerful
Compact. Versatile. Powerful.
An improved high-quality imaging system, upgraded 9.3 miles image transmission range, and additional modular accessories help you meet a variety of use cases including inspection, search and rescue, situation overwatch, and more.
All New 6K 1″ CMOS
See clearer with Sony’s new 20 megapixel 1 inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video resolution with stronger noise suppression, and higher frame rates.
1-INCHÂ CMOS |Â 20MPÂ Photo |Â 6k/30FPSÂ Video |Â F2.8~F11Â Aperture
Excel in Low Light
EVO II Pro V3 brings you Autel’s Moonlight Algorithm 2.0 with additional noise reduction processing. Paired with EVO II Pro V3’s upgraded CMOS, it succeeds in operations with minimal lighting or in harsh lighting situations at night.
*  It’s required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.
**Â Â Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.
42mins – Maximum Flight Time | 15km – (9.3miles) Maximum Transmission Range | 20m/s – (45mph) Max Flight Speed
12m/s – 27mph）Maximum Wind Resistance | 920g -2lbs）Maximum Lift Capability
Quick Specifications
- 20MP Photo
- 1-inch CMOS Sensor
- 360° Obstacle Avoidance
- F2.8~F11 Aperture
- No no-fly zones
- 42-min Flight Time
- 9.3 miles Max Transmission Range
- 45 mph Max Level Flight Speed (Ludicrous)
- 8Gb Internal Storage
In the Box
- 1x Aircraft (including battery, propellers and gimbal cover)
- 1x Autel Robotics V3 7.9″ Smart Controller
- 2x Spare Propellers (pair)
- 1x Smart Controller USB-C Charging Cable & Power Brick
- 1x Battery Charger (Wall Cord and Power Converter)
- 2x Spare Battery
- 1x set Spare Controller Sticks
- 1x 32 GB SD Card
- 1x Smart Controller Hanging Neck Strap
- 1x RTK Module Attachment Port Cover
- 1x Enterprise Speaker Attachment
- 1x Enterprise Search Light Attachment
- 1x Enterprise Strobe Light Attachment
- 1x Evo II Battery Car – Charger
- 1x Evo II Battery Multicharger
Information
Downloads
Discover more from Kuker-Ranken (KR)
Subscribe to get the latest posts sent to your email.
Specifications
Aircraft
| Takeoff weight |
1191 g |
| Max takeoff weight |
2000 g |
| Wheelbase |
397 mm |
| Size(L*W*H) |
230*130*108mm（folded）
457*558*108mm（unfolded） |
| Maximum service ceiling altitude |
7000 m |
| Max ascent speed |
8 m/s (Ludicrous) |
| Max descent speed |
4 m/s (Ludicrous) |
| Max horizontal flight speed |
20m/s (Ludicrous) |
| Max flight distance (no wind) |
25 km |
| Max tilt angle |
33° (Ludicrous) |
| Max angular velocity |
120°/s |
| Max flight time (no wind) |
40 min |
| Max hovering time (no wind) |
35 min |
| Operating temperature range |
-10℃ ~ 40℃ |
| Maximum resistance to wind |
12 m/s (Take-off and landing) |
| Operating frequency |
902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only) |
| Transmission power |
900M
FCC/ ISED：≤31dBm
2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm
5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBm |
| Hovering accuracy |
Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GPS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GPS works normally) |
| GNSS |
GPS/Beidou/Glonass/Gallieo |
| Internal storage |
8GB |
| SD storage |
max. support 256GB (UHS-3 or Class 10) |
Gimbal
| Gimbal |
3-axis stabilization |
| Mechanical range |
Tilt: -135° to +45°;
Pan: -100° to +100° |
| Controllable rotation range |
Tilt: -90° to +30°;
Pan: -90° to +90° |
| Max control speed (Tilt) |
300°/s |
| Angular Vibration Range |
±0.005° |
Remote controller and image transmission
| Operating frequency |
902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only) |
| Transmission power |
FCC：≤33dBm
CE：≤[email protected]，≤[email protected]
SRRC：≤[email protected]，≤[email protected]/5.7G |
| Max Transmission Distance (unobstructed, free of interference) |
FCC：15km
CE：8km |
| Display screen |
2340×1080 60fps |
| Battery |
1900mAh |
| Operating time |
~2 hours (Max. Brightness)
~3 hours (50% Brightness) |
| Charging time |
90 minutes |
| Internal Storage |
ROM 128GB + expandable storage via micro-SD card |
Sensing system
| Sensing system type |
Omnidirectional sensing system |
| Forward |
Accurate measurement range: 0.5-18 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80° |
| Backward |
Accurate measurement range: 0.5-16 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80° |
| Upward |
Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: Horizontal: 65°, Vertical: 50° |
| Downward |
Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 100°, vertical: 80° |
| Left and right |
Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 65°, vertical: 50° |
| Operating Environment |
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.) |
Camera
| Sensor |
1 inch CMOS; 20M pixels |
| Lens |
FOV: 82°
Equivalent focal length: 29 mm
Aperture: f/2.8 – f/11
Focus range: 0.5 m to infinity |
| ISO range |
Video: 100-44000
Photo: 100-6400 |
| Shutter speed |
Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame rates |
| Zoom |
1-16x (up to 3x lossless zoom) |
| Photo mode |
Single shot/Burst shooting/AEB/Time Lapse/HDR |
| Maximum photo size |
5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9) |
| Image Format |
JPG (default) / DNG / JPG+DNG |
| Photo mode |
5472x3076P30/P25/P24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24 |
| Video format |
MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max bitrate |
120Mbps |
| Supported file system |
FAT32/exFAT |

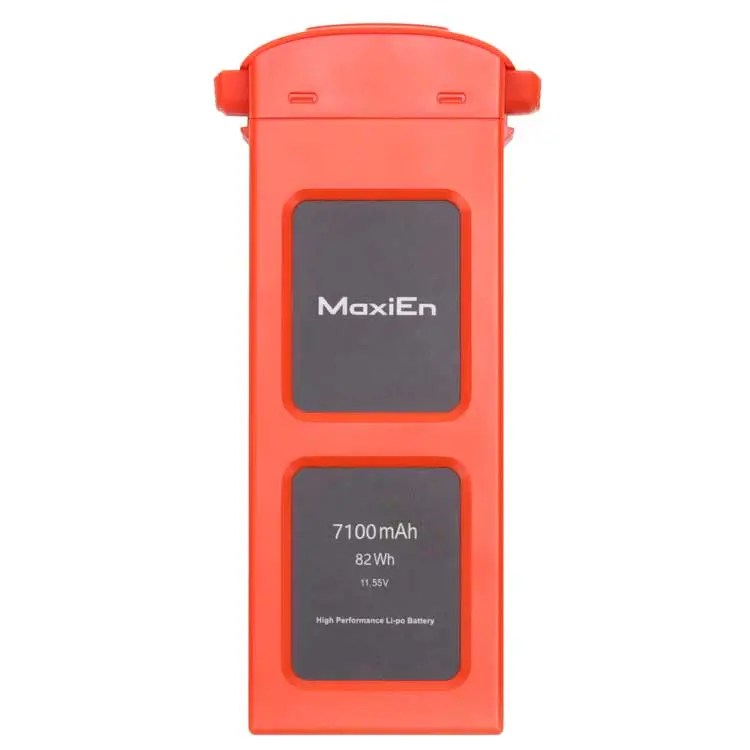

Battery
| Capacity |
7100 mAh |
| Voltage |
11.55 V |
| Battery type |
LiPo 3S |
| Energy |
82 Wh |
| Weight |
365 g |
| Charging temperature range |
5℃ to 45℃ |
| Storage temperature and humidity |
-10~30℃，65±20%RH |
| Recommended storage temperature |
22-28℃ |
| Max charging power |
93W |
| Charging time |
90 minutes |
Charger
| Input |
100-240 V, 50/60 Hz, 1.5A |
| Output |
13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5A |
| Voltage |
13.2±0.1V |
| Rated power |
66W |
Multi-Charger
| Voltage |
13.2 V |
| Charging temperature range |
5℃ to 45℃ |
