Description

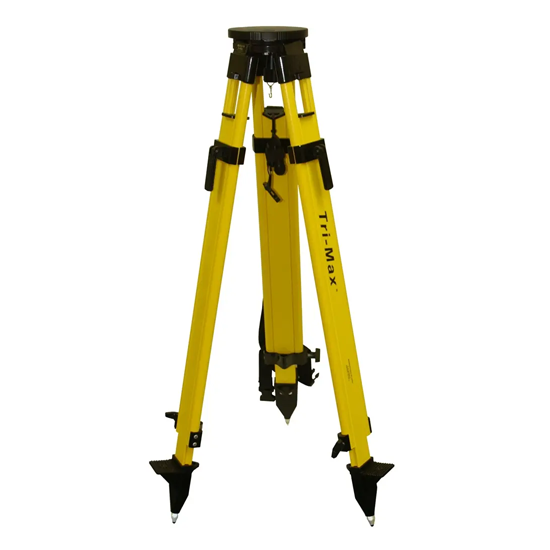

Tri-Max Tall Quick/Dual Clamp Instrument Tripod 90560
- The Tri-Max® is the only surveying grade tripod with certified accuracy – highly recommended for all servo driven and robotic total stations, 3-D laser scanners or construction lasers
- The revolutionary design of this tripod series means this tripod will meet ISO standard (12858-2-H) right out of the box, and after years of field use
- Features a 6-5/8-inch Flat head with large center hole (2-5/8 inch) to facilitate an easy set-up over a point
- A retaining system-which prevents leg kick out and accidental falls on slick surfaces-is stored on the inside of the leg and can be left in place when the tripod is not in use
- The large ‘footbed’ is there to facilitate solid planting for stability
- The shape and size of the foot are designed to allow for a solid placement on any terrain
- The foot is equipped with a replaceable point and a retention loop for use with a safety strap
- The Tri-Max can handle equipment up to 65 lb (30 kg)
- Quick/Dual Clamp Lock type
- Black Hardware, Fiberglass Legs
- Extends 91 in (2.3 m)
- Collapses 54 in (1.37m)
Shipping Weight 32 lbs (14.51 kg)
